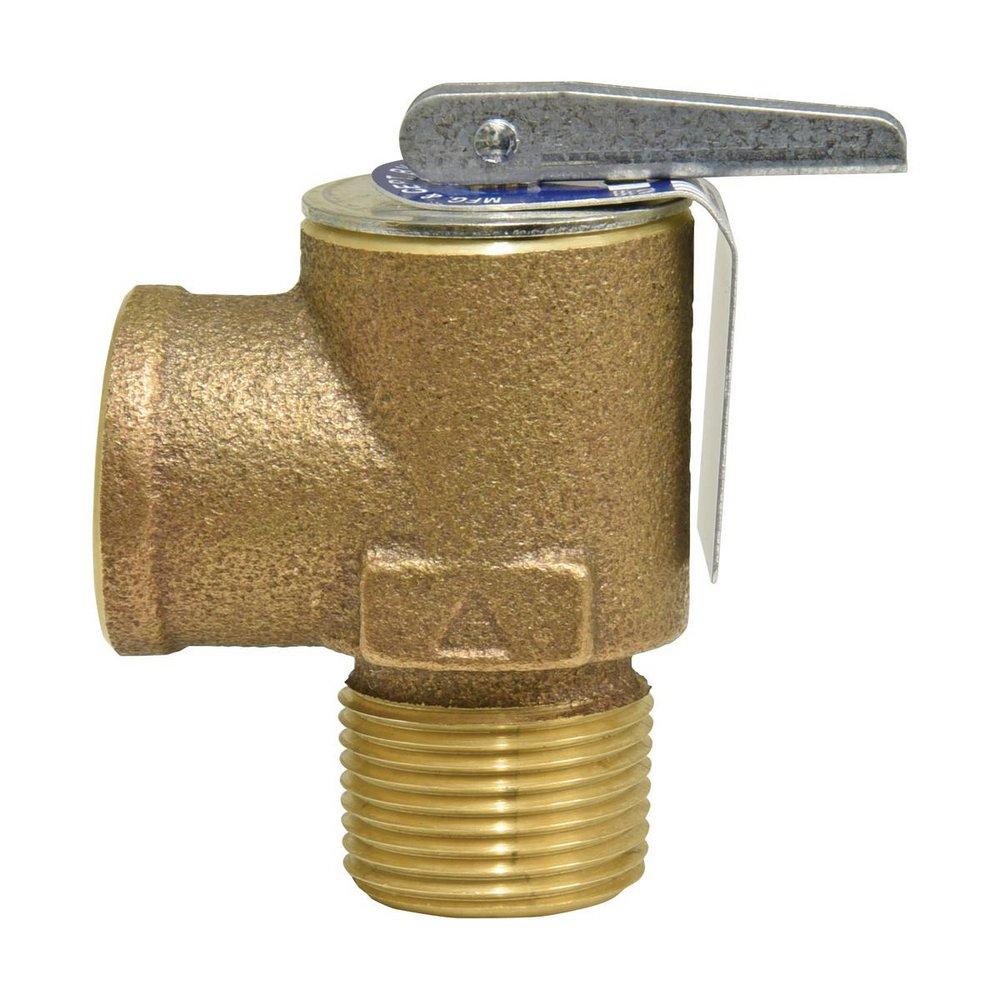

Consolidated Supply Co. | WATTS® 0556000 LF100XL Self-Closing Temperature/Pressure Relief Valve, 3/4 In Nominal, MNPT X FNPT End Style, 150 Psi Pressure, Copper Alloy Body, Domestic

This makes it suitable for use in potable water systems, safeguarding both the system and users from lead. This valve also features NPT male inlet and NPT female outlet connections, making installation straightforward, and its test lever allows for easy testing and maintenance. The thermostat is equipped with a special thermo-bonded coating, which enhances its accuracy and responsiveness. For optimal performance, the thermostat must be immersed in water within the top 6 inches (152 mm) of the tank. Designed to meet rigorous safety standards, the Watts Pressure Relief Valve is both ASME rated and CSA listed. It is engineered to handle a temperature relief setting of 210° F (99° C) and a pressure relief range of 75 to 150 psi (5.2 to 10.3 bar), providing comprehensive protection against the dangers of overpressure and excessive temperatures. It provides temperature relief at 210-Degree F and pressure relief at 150 psi. PRESSURE RELIEF VALVE: The Watts 3/4 Lead-Free Bronze Pressure Relief Valve provides fully automatic self-closing temperature and pressure relief protection for hot water storage tanks and water heaters up to 105,000 BTU/HR. COMPREHENSIVE FEATURES: This 2-in-1 temperature and pressure relief valve features a lead-free copper alloy body construction, NPT male inlet x NPT female outlet connections, test lever, and extension thermostat for installation in the hot water outlet line or directly in the tank tapping. HIGH PROTECTION LEVEL: ASME rated and CSA listed, these valves are designed with a temperature relief setting of 210° F (99° C) and a pressure relief range of 75 to 150 psi (5.2 to 10.3 bar). EVERY DROP COUNTS: Water. It's in our name and close to our hearts. Since 1874, Watts Water Technologies has been delivering innovative technologies that make the world's most precious resource safe and accessible. Everything we design is made to keep the Earth's most precious resource safer, cleaner, and more useful for our customers.
